Strategic Migration Shifts UMass Amherst from Analog to IP Video
Open video recording platform helped solidify campus-wide security initiatives, including improved access control and intrusion detection.
The University of Massachusetts in Amherst, Mass., (UMass Amherst) located in the Pioneer Valley, maintains a sharp focus on security and safety of the campus population of more than 32,000 and has been executing a strategic shift from analog to Internet Protocol (IP) video, integrated with access control and intrusion detection.
As technology has progressed, so has UMass Amherst, seeking solutions to effectively leverage current components while migrating to networking technologies and future-proofing surveillance recording solutions with the ability to incorporate the latest, high-resolution megapixel cameras.
When the university’s legacy, siloed recording system was nearing its end of life several years ago and would no longer be supported, it was time to re-evaluate the present with an eye to the future. UMass needed to incorporate existing analog where necessary yet add the highest quality IP video when and where it was needed as the campus continued to grow.
The UMass video strategy is purposeful and planned – with the evaluation of new products focusing on the openness of solutions, ease of use, and keeping bandwidth from being taxed as the security department and police department pull video locally across the LAN for investigations and forensics.
Eyeing the Future Today
UMass Amherst sits on nearly 1,450 acres in western Massachusetts, 90 miles from Boston and 175 miles from New York City. The campus provides a rich cultural environment in a rural setting close to several major urban centers. The UMass Amherst Police Department (UMPD), located on campus, works in partnership with the staff of the Residential Life Operation Center to ensure that its residence halls are safe places to live. The UMPD is a full-service police department with sworn officers, police dispatchers, non-sworn professional staff, and over 200 student security employees.
The university first piloted video monitoring and recording beginning in 2001 in several buildings with different footprints and configurations to see how it would be managed.
“I was then tasked with installing cameras in the residence halls over a 10-year-period, starting in 2003 to 2004,” said Jim Meade, Residence Hall Security Manager, UMPD. ” It was originally a 10-year plan, which we accelerated to three years and coincided with the rise of the Boston Red Sox. For excited fans at the college, their behavior wasn’t always ideal. By the end of the summer of 2006, we had cameras in all of the 45 residence halls at the time.”

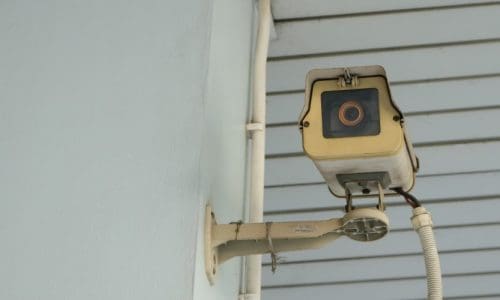

When the process first began in 2004, there was no network. Cameras were analog, recorded locally at the building where the devices were located. As networking caught up, Meade said, campus connectivity was built to support networking on personal computers and desktops.
“We originally built our system in an architecture that wasn’t reliant on an IT network that may or may not be there or backed up and since then we’ve maintained the distributed/decentralized model of recording,” Meade said.
“With the distributed model, if there’s a power failure or network equipment goes down, as long as it’s connected to the UPS, it stays up and is operational,” said Peter Ferguson, Senior Electronics Security Engineer, Electronic Security Systems (ESS), A&F Information Technology (AFIT), UMass. “It’s not reliant on things outside of our control to be able to communicate, so we can maintain video recording in the event of a network or power failure.”
In 2017, UMass learned its legacy video recording and camera system was going to be retired. With that date looming, the University began conducting technology evaluations to assess the best path forward under the guidance of Meade, the in-house systems integration department, headed by Peter Ferguson, and other campus stakeholders.
UMass Wish List
The University of Massachusetts required an open scalable platform to incorporate legacy cameras as well as connect the latest high-definition IP networking cameras.
Some of the wish list must-haves included:
- Robust Software Development Kit (SDK) and system programming openness,
- Integration with Active Directory to manage groups and users centrally,
- Ability to install third-party applications on the VMS recorders to meet compliance with university policies,
- Centralized monitoring platform for cameras and recorders, and
- Automatic software and firmware updates
To address these unique challenges, the university opted for a video management system that would incorporate all of these elements under an open-platform approach. Open platform provides the required flexibility of higher education organizations in managing multiple buildings by allowing them to integrate different access control systems and cameras all under one view. The scalability of this approach also saves the organization from replacing everything at once and enables the opportunity for future upgrades.
Vetting solutions involved nearly a dozen stakeholders representing various parts of the campus and included creating a spreadsheet with some 75 different criteria about necessary features and functionality, and inviting vendors to discuss how their solutions would meet these requirements. Once the vendor was selected, the plan was to migrate to the new video management and recording platform, deploying the solution in all new installations as a campus security standard.
Intrusion Marries with Video
The video solution at UMass has always focused on security – leveraging access control and intrusion detection to proactively assess alerts and initiate appropriate responses. That main directive hasn’t changed. Open platform introduces additional capabilities in substantiating and verifying door alarms when integrated with an access control event management system.
“The ability to have a ‘marriage’ between a door alarm and associated video was big for us,” said Meade. “For example, to be able to ascertain why an alert was occurring without having to deploy resources to drive across campus to visually assess the situation was huge. An example is a resident hall located near a bus stop. When it’s cold or rainy, the door will go in and out of alarm frequently. What we’ve come to learn from reviewing the video is that people are standing in the doorway, to stay warm and dry, and repeatedly opening the door to see if the bus is coming. That was one of those situations where the video saved us time and resources in investigation when it was actually a non-alarm.”
System Footprint Grows
With some 51 resident halls and 225 buildings, the campus at Amherst continues to grow. Anything built, acquired, or renovated in the last 10 years has access control and video. The university maintains a decentralized video surveillance recording model but intrusion and video monitoring is centralized and operated by UMPD.
Currently, a combination of access control and VMS platforms are working together in an integrated fashion. Alarms from the access control and door systems in the residence halls are enunciated in the Residential Life Operation Center where video pops up on desktops with the associated alarm and alerts recorded locally with no active monitoring. Video exceptions and alarms are viewed, monitored, and managed through the VMS platform at the police department, where operators have the video feed on desktops.
The university currently has some 1,685 video cameras deployed on campus, with newer installations deploying IP Axis cameras and some locations retaining older analog cameras until upgraded. Other surveillance locations include the Mullins Center 10,000-seat arena and an 18,000-seat football stadium. In addition to onsite locations, UMass has satellite locations in Hadley, Mass., as well as an Aviation Research and Training Center in Chicopee, with two new building purchases underway.
UMass is looking to the future with its flexible technology footprint: as new video management recording systems come online, they are designed to handle both analog cameras as well as accommodate newer IP devices.
The university is designing the system in a manner in which they can easily scale up and add cameras over time without having to incur the cost of a second or third recording server at that individual site. Part of the university’s standard for camera deployment includes ease of use and being able to operate the system without an arduous learning curve for its many different users with various levels of IT and computer expertise.
The future-proofed migration path provides UMass with the framework to move from an analog infrastructure to IP.
Jay Mele is vice president of sales at Salient Systems.
