How to Create an Effective Tornado Protocol for Your Campus
Schools should conduct hazard analyses, space calculations and site assessments so everyone on campus can locate the best available tornado sheltering options.
Photos and VideosView Slideshow
Since tornado warnings began in 1950 and tornado watches started in 1952, 57 students and staff members have died in severe storm events at schools. Fifteen deaths occurred in the last two incidents; eight died in Enterprise High School in Enterprise, Ala., in 2007, and seven died in Plaza Towers Elementary School in Moore, Okla. in 2013. Tornadoes are deadly and unpredictable. Preparing for them requires research and work.
During school assessments across the United States, school administrators have asked many questions about tornado protocols. In schools without tornado plans, leaders wondered if they should have them. In schools that had them, leaders wondered if they were doing things correctly.
A proper tornado protocol will offer the best available shelter for everyone. Campus leaders should conduct a realistic hazard analysis and space calculations, a building assessment and an exterior assessment. The end goal is a site map showing the floor plan of the facility, the location of the shelter areas and exterior hazards. This assessment process requires working with public safety officials, architects and engineers.
The Federal Emergency Management Agency (FEMA) provides resources for those preparing facilities for tornados. FEMA P-431, Tornado Protection: Selecting Refuge Areas in Buildings, is a free download on the FEMA’s website. FEMA P-361, Safe Rooms for Tornadoes and Hurricanes: Guidance for Community and Residential Safe Rooms, has more resources. It is also available as a free download.
Hazard Analysis and Space Considerations
Protocol development starts with an analysis of potential hazards. Figure 1 in the photo gallery shows the occurrence of EF-3, EF-4 and EF-5 tornados in the United States from 1950 to 2006. Smaller tornados are even more widespread. With local tornado events, the county or state emergency management agency has more precise data on local hazards.
Example Calculation of Required Refuge Area Space
A high school has 1,260 students, 4 of whom use wheelchairs; 55 faculty members; and 4 custodial and maintenance workers. At any given time, there can be up to 10 visitors. Planners calculate the required refuge area space by identifying all groups of occupants and their refuge space needs:
1,323 Occupants @ 5 sq ft each = 6,615 sq ft
4 Wheelchair users @ 10 sq ft each = 40 sq ft
Total = 6,655 sq ft
This space can be divided over several shelter areas.
Source: FEMA P-431
If school leadership determines the probability of a tornado is high enough to warrant developing a protocol, then the next step is to determine the space required to shelter everyone in the building. FEMA guidance is to provide space for everyone in the building, including visitors and those with special needs. The following have been provided as guidelines:
- Occupants, standing and sitting: 5 square feet per person
- Wheelchair users: 10 square feet per person
- Bedridden children or adults: 30 square feet per person
Assessments Reveal Building Strengths and Weaknesses

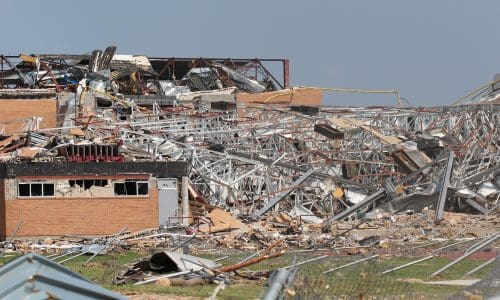

An EF-5 tornado that struck Joplin, Mo., on May 20, 2011 destroyed 20 percent of the town and damaged 75 percent of the buildings. Video footage of tornado winds in a high school hallway prompted a school superintendent to state he would never again use hallways as shelters. This blanket statement, while understandable, violates a precept of emergency management. Leaders should tailor emergency planning to the individual facility.
When planning for a tornado, school leaders must know the strengths and weaknesses of their building. This phase of protocol planning requires an architect or structural engineer and blueprints of the facility. There are specific structural features to look for when designating a shelter area.
A floor below ground provides safer shelter areas. The higher up one goes in a building, the stronger the winds of the storm. A building assessment will identify the following protective elements:
- Interior partitions: These are walls that are securely attached to the floor above and below. Interior partitions with windows are dangerous.
- Short roof spans: Spans are the load-bearing part of the roof. Spans longer than 40 feet are subject to catastrophic failure in a tornado (think gymnasiums and cafeterias). Spans of 25 feet or less are ideal.
- Rigid frames: Buildings with heavy steel or reinforced concrete frames connected for lateral and vertical strength are superior to buildings that contain loadbearing walls.
- Poured, reinforced concrete walls: These types of walls are the strongest. Regardless of the type of wall, the supports should be secured to the floor and roof systems.
School officials should look for these are hazardous elements during the assessment:
- Long span roofs: Rooms with high ceilings typically have long roof spans. These rooms should be avoided, as the overpressure caused by the tornado will lift the roof and collapse the walls.
- Lightweight roofs: Steel deck, gypsum, lightweight insulating concrete, cement wood fiber, wood plank and plywood roofs usually will be lifted and partially carried away while roof debris falls into the room below.
- Heavier roofs: Precast concrete planks, channels and tees roof-types may be lifted, move and then fall. If supporting walls have collapsed, the roof may fall onto the floor below, killing or seriously injuring anyone there.
- Windows: These are subject to wind and missile damage. When they give out, the broken glass becomes sharp missiles that can cause serious injury or death.
- Unprotected hallways: While not all hallways are dangerous, some are… specifically, hallways with unprotected entrances facing oncoming winds. A reinforced wall in front of these entrances can help protect these entrances.
- Loadbearing walls: These walls are the only support for floors above or the roof. If the wall fails, the floor above or the roof, fails too.
- Masonry construction: These types of walls are usually not vertically reinforced and can fail under the high horizontal pressures of a tornado.
Don’t Forget to Also Assess the Building’s Exterior
Once campus leaders complete the building assessment and identify shelter areas, they should do an exterior assessment. This assessment looks at things outside the building that might create a negative impact on the shelter areas. This assessment does not require an architect or engineer, but it is advisable to have assistance from public safety personnel.
For this assessment, the leader and his or her team inspect the grounds and identify trees more than six inches in diameter. They should also identify light poles, flagpoles, power poles, masonry chimneys, electrical transmission towers and communication towers. The goal is to create a site plan and place these objects on it. (See Figure 2) This plan should note the heights of these objects and the subsequent fall zones they create. The best available refuge areas should not be within or next to the fall-down zones because falling trees, poles, chimneys and towers can cause localized building damage (See Figure 3).
Another consideration is vertical missile damage. This is debris that falls and penetrates the roof (See Figure 4). This is another reason to avoid the use of upper floors.
FEMA 361 has a best available shelter checklist that campus officials can use to verify that the selected areas are the best available in the building. FEMA 361 also includes information that can help building administrators improve the effectiveness of their selected shelter areas, such as signage and operations plans.
Architects, Structural Engineers Can Help
Tornados are dangerous, complex and unpredictable storms. Preparing for them is more complex than just deciding what hallways to use. Planning for a tornado protocol, like any other hazard planning, requires a realistic risk-based approach. It is a collaborative effort, with members providing their expertise to the process. School leadership can use this process to get to know their building better, as well as learn where their building is strongest and weakest.
Having an architect, structural engineer or other licensed professionals who can examine the building is the key to a successful assessment. This not only helps with knowing the building, and with finding best available shelter areas, it reduces liability. The goal is a well-researched sitemap that includes all hazards and the best available shelters.
Many schools are not designed with shelter areas in mind. This makes the best available shelter model an imperative. The perfect shelter is one built to FEMA specifications, but that is a rare find in schools. The majority of schools have to rely on the best available shelters. If you are in an area prone to tornados, the time spent on a proper assessment will be worth it. Your people deserve no less.
Stephen Satterly, Jr. is an adjunct analyst with Safe Havens International. He is also a researcher and author. He can be reached at email@example.com.
